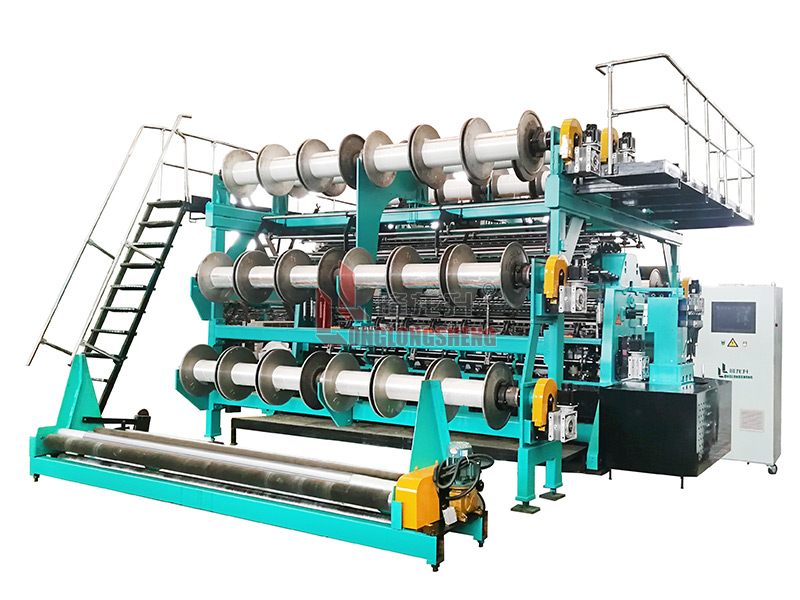

GE2812(RD) High Speed Double Needle-bar Warp Knitting Machine

Purpose and feature of the machine

This machine is apt to produce cloister 3D mesh net fabric and plush fabric, mainly for shoes fabric, Car cloth, Bag net.
The machine is equipped with oiled eccentric rod system, electronic let-off. Electronic take up and synchronous belt drive.

Technical Data

1. Working needle: Latch needle or embed latch needle.
2. Machine gauge: E20, E22, E24, E28
3. Nominal width: 138" (3500mm)
4. Number of guide bar: 5 / 6 / 7
5. Yarn let-off system: Electronic beam control (EBC)
6. Pattern device: Pattern disc, EL system
7. Trick plate distance infinitely variable: 1-6mm / 1-12mm universal
8. Fabric take-up: Electronic control
9. Batching device: 2 rollers with friction drive, separately-standing
10. Motor: Main Motor 5.5 kW with frequency convertor controlled
11. Machine speed: 350-600 r/min
12. Beam size: 21", 30"
13. Machine Size: 6000 mm (L) x 6000 mm (W) x 3500 mm (H)
14. Machine Weight: Appro x 8000 kg

Net example
